2 Way & 4 Way DiSEqC Switches


Are You Tired of Having Problems with CHEAP DiSEqC Switches???
Then NO MORE! Use a High Quality OCTAGON Switch.

OCTAGON has High Isolation to prevent Bleed Over between ports and Short Circuit Protection!

2 and 4 Way Switches to choose from. The WHITE are Fuse Short Circuit Protected
The Gold are Gold Plated and Inputs and Output are Fuse Short Circuit Protected Individually


OCTAGON 2 WAY WHITE HIGH QUALITY DiSEqC SWITCH - $14.99
Octagon ODS 21-03 DiseqC Switch

$14.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

With the OCTAGON GERMANY OPTIMA DiSEqC switches, you not only acquire first-class quality, but also state-of-the-art technology. The new OCTAGON ODS OPTIMA DiseqC switch convinces with its quality and easy installation. The weatherproof housing offers protection against moisture and snow. The attachment of the DiseqC switch, is possible on a pole or on a wall bracket. Suitable for Single - Twin - Quad and Octo LNB`s. The Octagon ODS 21-03 DiseqC Switch is used to switch two satellite dishes, with one line, for a digital receiver.

  • Inputs: 2, Outputs: 1
  • Input frequency: 950 ~ 2400 MHz
  • Transmission loss: <2 dB
  • Power consumption: 15mA
  • Max. Load: 500mA
  • Inputs / Output impedance: 75 ohms
  • Temperature range: -30 C ~ 60 C
  • Output: A / B or 1/2
  • Control: DiSEqC 2.0
  • Criteria: DiSEqC and ToneBurst Compatible
  • Isolation: Twin Quad and Octo capable (HI ISO)
  • Fuse: Short circuit proof
  • Housing: Plastic weatherproof housing
  • Zinc housing inside
  • Manufacturer warranty: 36 months

OCTAGON 2 WAY WHITE HIGH QUALITY DiSEqC SWITCH - $14.99
Octagon ODS 21-03 DiseqC Switch

$14.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States


OCTAGON 4 WAY WHITE HIGH QUALITY DiSEqC SWITCH - $19.99
Octagon ODS 41-03 DiseqC Switch

$19.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

With the OCTAGON GERMANY OPTIMA DiSEqC switches, you not only acquire first-class quality, but also state-of-the-art technology. The new OCTAGON ODS OPTIMA DiseqC switch convinces with its quality and easy installation. The weatherproof housing offers protection against moisture and snow. The attachment of the DiseqC switch, is possible on a pole or on a wall bracket. Suitable for Single - Twin - Quad and Octo LNB`s. The Octagon ODS 41-03 DiseqC Switch is used to switch two, three or four satellite dishes, with one line, for a digital receiver.

  • Inputs: 4, Outputs: 1
  • Input frequency: 950 ~ 2400 MHz
  • Transmission loss: <2 dB
  • Power consumption: 15mA
  • Max. Load: 500mA
  • Inputs / Output impedance: 75 ohms
  • Temperature range: -30 C ~ 60 C
  • Output: A / B / C / D or 1/2/3/4
  • Control: DiSEqC 2.0
  • Criteria: DiSEqC and ToneBurst Compatible
  • Isolation: Twin Quad and Octo capable (HI ISO)
  • Fuse: Short circuit proof
  • Housing: Plastic weatherproof housing
  • Zinc housing inside
  • Manufacturer warranty: 36 months

OCTAGON 4 WAY WHITE HIGH QUALITY DiSEqC SWITCH - $19.99
Octagon ODS 41-03 DiseqC Switch

$19.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States


"OUR BEST" - OCTAGON 2 WAY GOLD HIGH QUALITY DiSEqC SWITCH - $19.99
Octagon SPU 21-02 DiseqC Switch

$19.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

With the OCTAGON GERMANY OPTIMA DiSEqC switches, you not only acquire first-class quality, but also state-of-the-art technology. The new OCTAGON ODS OPTIMA DiseqC switch convinces with its quality and easy installation. The weatherproof housing offers protection against moisture and snow. The attachment of the DiseqC switch, is possible on a pole or on a wall bracket. Suitable for Single - Twin - Quad and Octo LNB`s. The Octagon SPU 21-02 DiseqC Switch is used to switch two satellite dishes, with one line, for a digital receiver.

  • Inputs: 2, Outputs: 1
  • Gold plated inputs & output
  • Input frequency: 950 ~ 2400 MHz
  • Transmission loss: <2 dB
  • Power consumption: 15mA
  • Max. Load: 500mA
  • Inputs / Output impedance: 75 ohms
  • Temperature range: -30 C ~ 60 C
  • Output: A / B or 1/2
  • Control: DiSEqC 2.0
  • Criteria: DiSEqC and ToneBurst Compatible
  • Isolation: Twin Quad and Octo capable (HI ISO)
  • Fuse: Inputs & output short circuit proof individually
  • Housing: Plastic weatherproof housing
  • Zinc housing inside
  • Manufacturer warranty: 36 months

"OUR BEST" - OCTAGON 2 WAY GOLD HIGH QUALITY DiSEqC SWITCH - $19.99
Octagon SPU 21-02 DiseqC Switch

$19.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

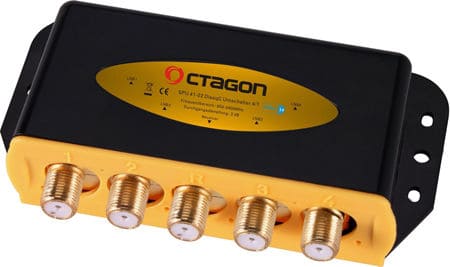

"OUR BEST" - OCTAGON 4 WAY GOLD HIGH QUALITY DiSEqC SWITCH - $24.99
Octagon SPU 41-02 DiseqC Switch

$24.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

With the OCTAGON GERMANY OPTIMA DiSEqC switches, you not only acquire first-class quality, but also state-of-the-art technology. The new OCTAGON ODS OPTIMA DiseqC switch convinces with its quality and easy installation. The weatherproof housing offers protection against moisture and snow. The attachment of the DiseqC switch, is possible on a pole or on a wall bracket. Suitable for Single - Twin - Quad and Octo LNB`s. The Octagon SPU 41-02 DiseqC Switch is used to switch two, three or four satellite dishes, with one line, for a digital receiver.

  • Inputs: 4, Outputs: 1
  • Gold plated inputs & output
  • Input frequency: 950 ~ 2400 MHz
  • Transmission loss: <2 dB
  • Power consumption: 15mA
  • Max. Load: 500mA
  • Inputs / Output impedance: 75 ohms
  • Temperature range: -30 C ~ 60 C
  • Output: A / B / C / D or 1/2/3/4
  • Control: DiSEqC 2.0
  • Criteria: DiSEqC and ToneBurst Compatible
  • Isolation: Twin Quad and Octo capable (HI ISO)
  • Fuse: Inputs & output short circuit proof individually
  • Housing: Plastic weatherproof housing
  • Zinc housing inside
  • Manufacturer warranty: 36 months

"OUR BEST" - OCTAGON 4 WAY GOLD HIGH QUALITY DiSEqC SWITCH - $24.99
Octagon SPU 41-02 DiseqC Switch

$24.99 Plus Shipping
Plus $7.50 Shipping within the 48 Cont. United States

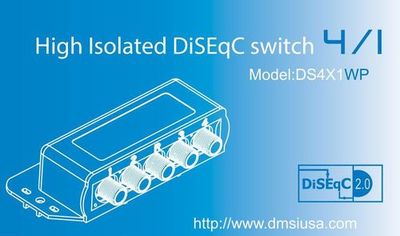

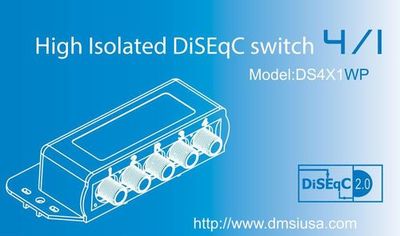

DSS4X1WP DMSI 4 Way Outside Weather Proof DiSEqC Switch - $8.00
Plus Shipping


The 4 Way DiSEqC switch with the Weather Proof cover allows you to safely mount your switch outside and will enable the user to select one LNB signal between 2 different LNBs of any type.

The 4 input ports marked SAT1, 2, 3 or 4 are connected to the 4 LNBs, which may be on 4 different dishes, and the output marked OUT is connected to the receiver.

The selection of the LNBs is done by choosing the appropriate Tone Burst A, B, C or D in the menu of the receiver.

DMSI Outside Weather Proof 4 Way DiSEqC - $8.00
Plus $7.50 Shipping
within the 48 Cont. United States

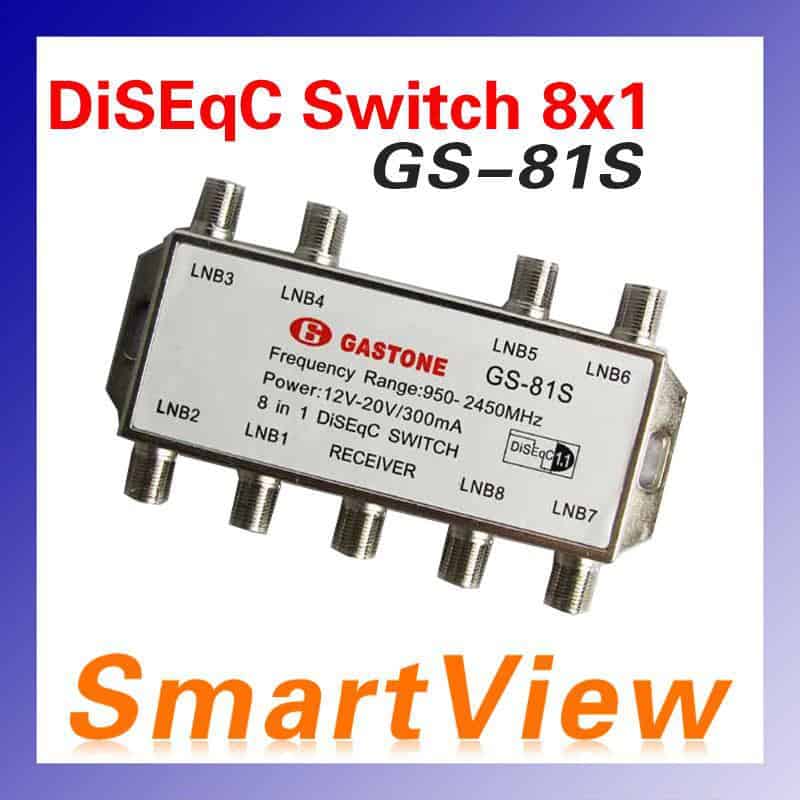

GASTONE GS81S - 8 x 1 DiSEqC Switch - 14.99
Plus Shipping

GS-81S 8 in 1 DiSEqC Switch for a Digital Satellite Receiver

Frequency Range:950-2450 MHZ

Power:12V-20V/300mA

GASTONE GS81S - 8 x 1 DiSEqC Switch - 14.99
Plus $7.50 Shipping within the 48 Cont. United States


DS322 DMSI Dual 2x1 DiSEqC Switch - $19.99
Plus Shipping

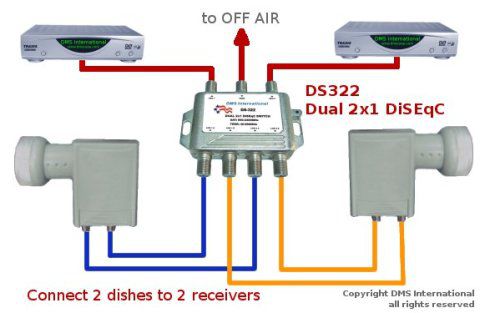

This new DiSEqC switch allows the user to connect 2 satellite receivers to 2 satellite dishes using twin LNBFs and the new DS322 Dual 2x1 DiSEqC switch.  This switch allows the user to watch either satellite on either receiver at any time.

This is something that we've needed for a long time.  It's always been a problem to connect 2 receivers to a system using 2 dishes aimed a different satellites.  Now you can do it with one device, the DS322.  Less in line devices, less coax jumpers and less F connectors to deal with.

Always power down your receiver before connecting or dis-connecting DiSEqC switches to avoid damaging your switch.

DS322 DMSI Dual 2x1 DiSEqC Switch - $19.99
Plus $7.50 Shipping
within the 48 Cont. United States

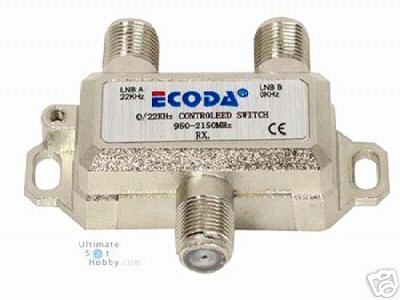

EC2111 ECODA 22KHz Switch - $18.00
Plus $7.50 Shipping within the 48 Cont. United States

This Small, but High Performance 22KHz switch allows you to select one LNB signal between 2 different LNBs of any type or you can use it in front of 1 or 2 DiSEqC Switches to allow you to connect up to 8 different LNBs.

ECODA 22KHz Switch - $18.00
Plus $7.50 Shipping within the 48 Cont. United States
