INSTALLATION ACCESSORIES
Cable Connectors / Cable Clips / Wire Ties / Tools etc.
RG-6 Cable Ends and Tools

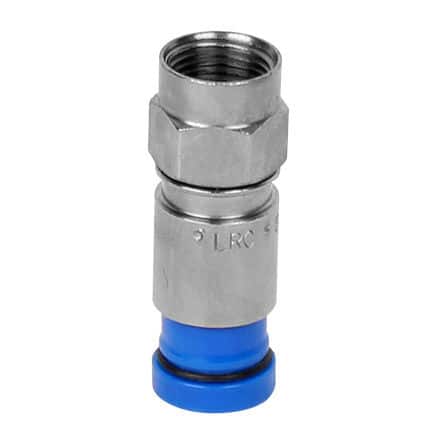

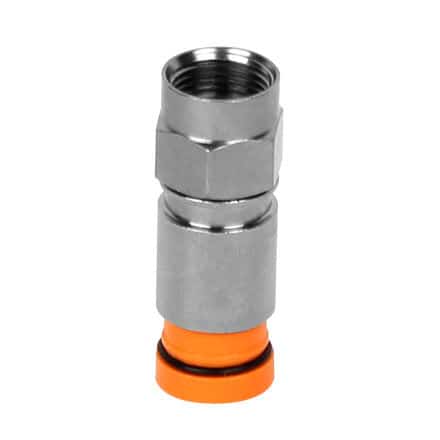

TNB5007 - Belden™ SNS1P6 LRC® Snap-N-Seal® F Series Male Environmentally Sealed RG-6 Connectors (Bag of 50)

The Snap-N-Seal® Compression Connector, the newest addition to the Snap-N-Seal® system. Look for the classic design of this T&B connector. With its user-friendly, pre-positioned and detachably coupled plastic sleeve, the Snap-N-Seal® Connector incorporates time-proven advantages for a reliable connection.

Superb Performance The SNS1P6 has superb return loss performance of -30dB to 1GHz. True 360 degree compression onto cable ensures superior RF shielding performance, -95dB effective shielding (typical on 60% bonded foil cable), and provides superior RF integrity.

One for All! This one connector is used for 6 Series SCTE specification drop cables including 60% braid, tri-shield, and quad shield.

Simplified Install To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body. The plastic sleeve’s separability from the connector body further simplifies difficult installations. Installation requires one-step 1/4" - 1/4" cable preparation.

Reliable Construction The SNS1P6 incorporates an iridescent chromate finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product. It is manufactured of high quality 360 brass, and is cadmium plated with yellow chromate coating for maximum corrosion resistance.

Even More Features! Cable retention exceeds 40 lb. minimum as specified by the SCTE and quad-sealed system prevents moisture migration.

(Bag of 50)

Physical Properties
Nut, Post, and Collar: Brass
Nut and Collar Finish: Cadmium plated with iridescent chromate coating
Post Finish: Tin plated
O-Ring: Ethylene propylene
Electrical Properties
Return Loss: -30dB up to 1 GHz typical
Insertion Loss: = 0.18dB up to 1 GHz typical
RFI Shielding: -95dB typical (60% bonded foil cable)
Mechanical Properties:
Cable Retention: 40 lbs. min. complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs.
Environmental Properties
Temperature Rating: -40°F (-40°C) to 140F (60°C)
TNB5007 $34.99 for Bag of 50

Price Includes Shipping within the 48 Cont. United States

TNB5013 - Belden™ SNS1P6QS LRC® Snap-N-Seal® F Series Male Environmentally Sealed RG-6 Quad Shield Connectors (Bag of 50)

Belden™ SNS1P6QS LRC® Snap-N-Seal® F Series Male Environmentally Sealed RG-6 Quad Connectors (Bag of 50) The Snap-N-Seal® Compression Connector, the newest addition to the Snap-N-Seal® system. Look for the classic design of this T&B connector. With its user-friendly, pre-positioned and detachably coupled plastic sleeve, the Snap-N-Seal® Connector incorporates time-proven advantages for a reliable connection.

Superb Performance The SNS1P6QS has superb return loss performance of -30dB to 1GHz. True 360 degree compression onto cable ensures superior RF shielding performance, -95dB effective shielding (typical on 60% bonded foil cable), and provides superior RF integrity.

One for All! This one connector is used for 6 Series SCTE specification drop cables including 60% braid, tri-shield, and quad shield.

Simplified Install To reduce assembly time and simplify installation, the plastic sleeve is pre-positioned and detachably coupled to the connector body. The plastic sleeve’s separability from the connector body further simplifies difficult installations. Installation requires one-step 1/4" - 1/4" cable preparation.

Reliable Construction The SNS1P6QS incorporates an iridescent chromate finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product. It is manufactured of high quality 360 brass, and is cadmium plated with yellow chromate coating for maximum corrosion resistance.

Even More Features! Cable retention exceeds 40 lb. minimum as specified by the SCTE and quad-sealed system prevents moisture migration.

(Bag of 50)

Physical Properties
Nut, Post, and Collar: Brass
Nut and Collar Finish: Cadmium plated with iridescent chromate coating
Post Finish: Tin plated
O-Ring: Ethylene propylene
Electrical Properties
Return Loss: -30dB up to 1 GHz typical
Insertion Loss: = 0.18dB up to 1 GHz typical
RFI Shielding: -95dB typical (60% bonded foil cable)
Mechanical Properties:
Cable Retention: 40 lbs. min. complies to SCTE IPS-SP-404
Cable Insertion Force: <20 lbs.
Environmental Properties
Temperature Rating: -40°F (-40°C) to 140F (60°C)
TNB5013 $34.99 for Bag of 50

Price Includes Shipping within the 48 Cont. United States

MAR9420 - Belden IT-1000 Combination Snap-N-Seal Installation and Cable Preparation Tool

Belden IT-1000 Combination Snap-N-Seal Installation and Cable Preparation Tool

Model IT-1000 All-in-one tool allows you to prepare coaxial cable and install any RG6 or RG59 Snap-N-Seal compression connector. See connector sleeve compress and hear the "snap" as the connector is installed correctly.

Strips and installs - This tool works with the TNB5007 and TNB5013 Cable Ends.

MAR9420 $109.99

Price Includes Shipping within the 48 Cont. United States

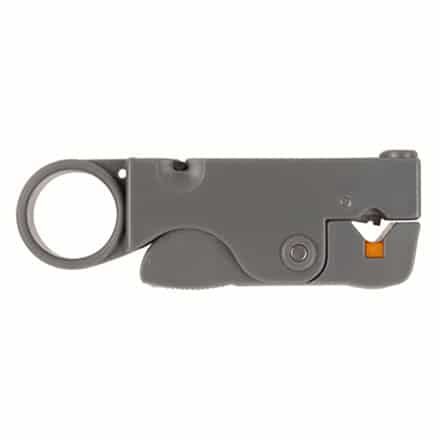

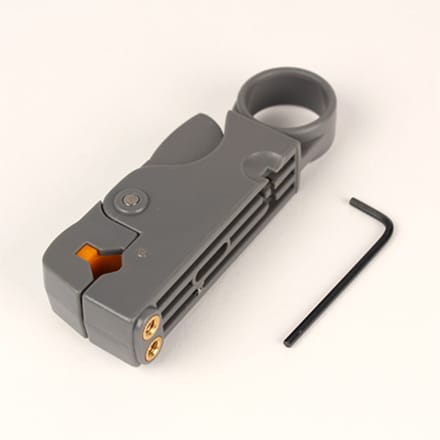

NSM1035 - InstallMates™ Coax Cable Rotary Stripper

The NSM1035 is a simple yet effective tool that is ideal for stripping a variety of common coax cables. RG59, RG6 and even RG58. This Rotary Stripper will get the job done.

Speed King
Located on the handle, the speed ring makes it quick and easy to strip the hacket off of the wire. Just put your finger in and spin it around the wire. This allows you to use your time and effort on other jobs.

Removable Blades
Blades get dull, it happens. Fortunately, we thought of that. This wire stripper has removable blades which are quick and easy to replace!

Adjustable Stripping distance
Included with the tool is a hex wrench that can be stored inside of the tool for quick access. It can be used to adjust the stripping distance for the perfect cut. Adjustable stripping distances includes 6mm, 8mm or 12mm.


NSM1035 $24.99

Price Includes Shipping within the 48 Cont. United States

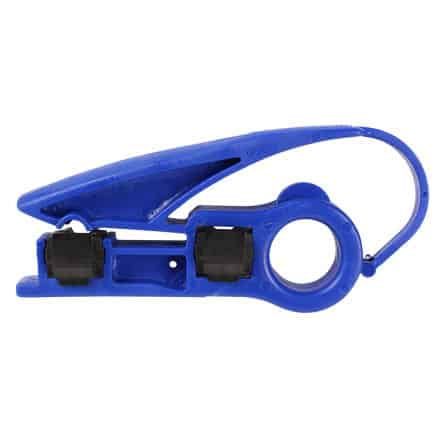

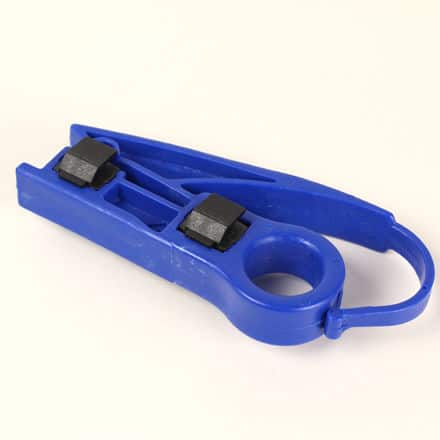

CST596596 - Belden Snap-N-Seal Cable Stripper

Constructed with an ergonomic design, this toll is intended to maximize productivity by reducing operator fatigue and discomfort. This coax cable stripper is guaranteed to make your job faster and easier. With this tool, you'll be able to strip a wire in less than five seconds!

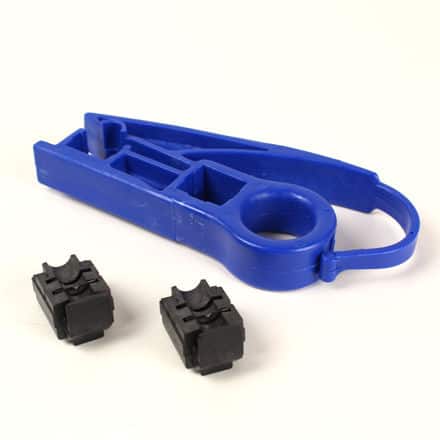

Blade Cassettes: This cable stripping tool comes with two sets of RG6 & RG59 blades. The blades are easy toremove and quick to replace.

Trusty, Not Rusty: Made with a hardened plastic, this cable stripper won't ever rust. In addition, it has incredible durability.

Speed Ring: Located on the handle, the speed ring makes it quick and easy to strip the jacket off of the wire. Simply place your finger in and spin it around the wire. This allows you to get the job done faster; ensuring that you can use your time and effort elsewhere.

One Step Strip: This tool makes it simple and easy to strip coax to a perfect, 1/4" - 1/4" prep. Smiply place the cable on the blades then spin it around the wire to give you a perfect cut every time.

CST596596 $39.99

Price Includes Shipping within the 48 Cont. United States

Compression RG-6 Cable Ends and Tools

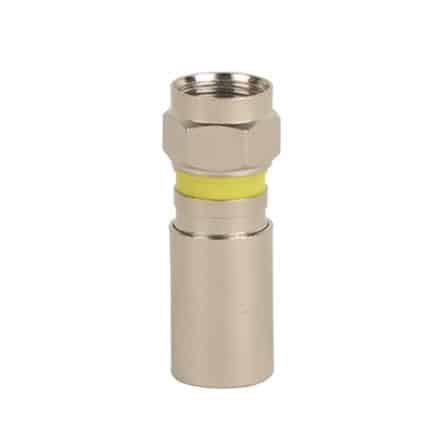

CONRG6F - Construct Pro™ F-Type Compression Connector for RG6, 75 Ohm (Bag of 50)

Nothing’s better than the combination of professional design and ease of install. Construct Pro’s line of Compression Connectors give you just that—a professional, secure, waterproof connection for coaxial cable. In addition, this line of connectors reduces signal leakage and protects against water migration.

Sturdy Construction: Plated with Nickel, Gold, and Black Nickel, Construct Pro™ connectors are guaranteed to give you years of unproblematic performance.

Construct Pro: Construct Pro’s line of connectors and adaptors offers the perfect assortment of products that every custom installer needs on hand. Never let an unexpected obstacle keep you from finishing a job! Construct Pro products are here to make your installs quick, easy, and professional.

Resealable Package: All of our connectors and adaptors come in a resealable package to prevent spill-outs and to keep you organized.

(Bag of 50)

Plating Nickel & Black Nickel
Impedance 75 ohm
Frequency Range 0-3 GHz
Insulation Resistance >5000 MX 100VDC
Cable Interface >55 lbs Pull Force
Moisture Migration SCTE IPS-TP-013 Exceeds
Temperature Cycling w/humidity +70° to 140° to -40°
CONRG6F $34.99 for Bag of 50

Price Includes Shipping within the 48 Cont. United States

PLA1116 - Platinum Tools 18002 SealSmart RG6 Quad Compression F Connector (Clamshell pack of 10)

Prepare for quick, easy, reliable installations with our RG6 SealSmart Quad Compression F Connectors. These helpful connectors are water tight, prevent strain, and are perfect for most DVR and Security wiring installs. The perfect solution for CATV, DSS, Security, Home Theatre, and Residential structured wiring installations. Its molded gasket ensures a weather tight seal that provides quality and longevity.

Platinum Tools

Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely, and high quality manner. All of Platinum Tools® products absolutely must satisfy three critical benchmark criteria: utility of function, quality of function, and economic value.


Manufacturer Platinum Tools
Connector Type CATV/F Type
Cable Type RG6
Manufacturer Part Number 18002
PLA1116 $22.99 for Pack of 10

Price Includes Shipping within the 48 Cont. United States

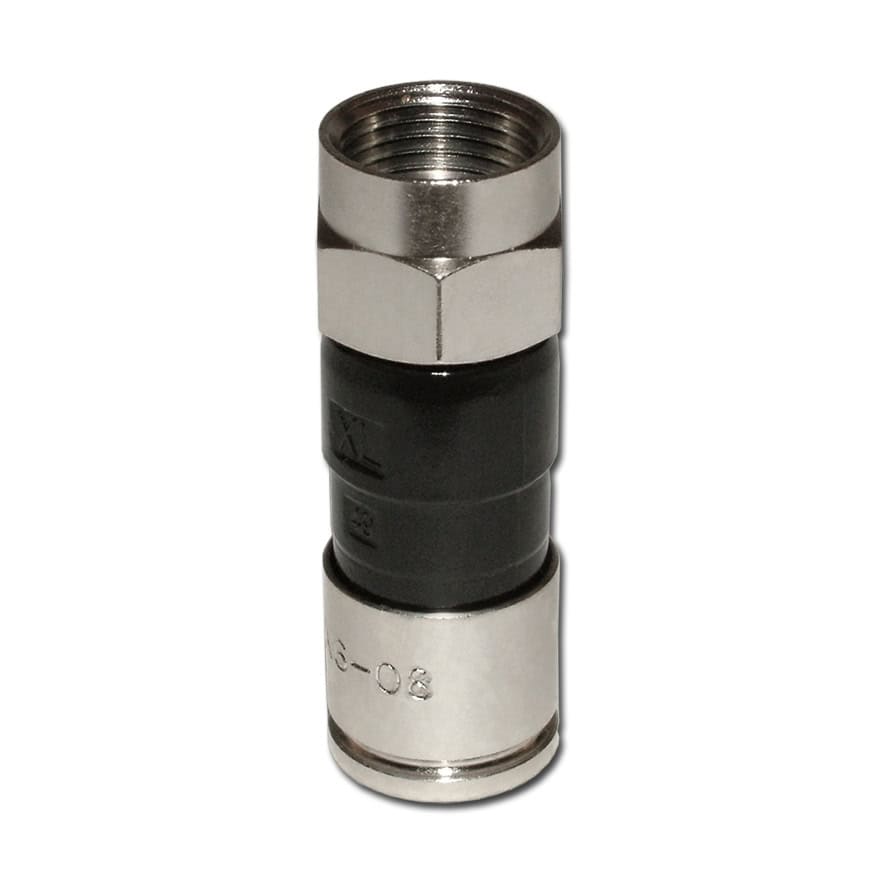

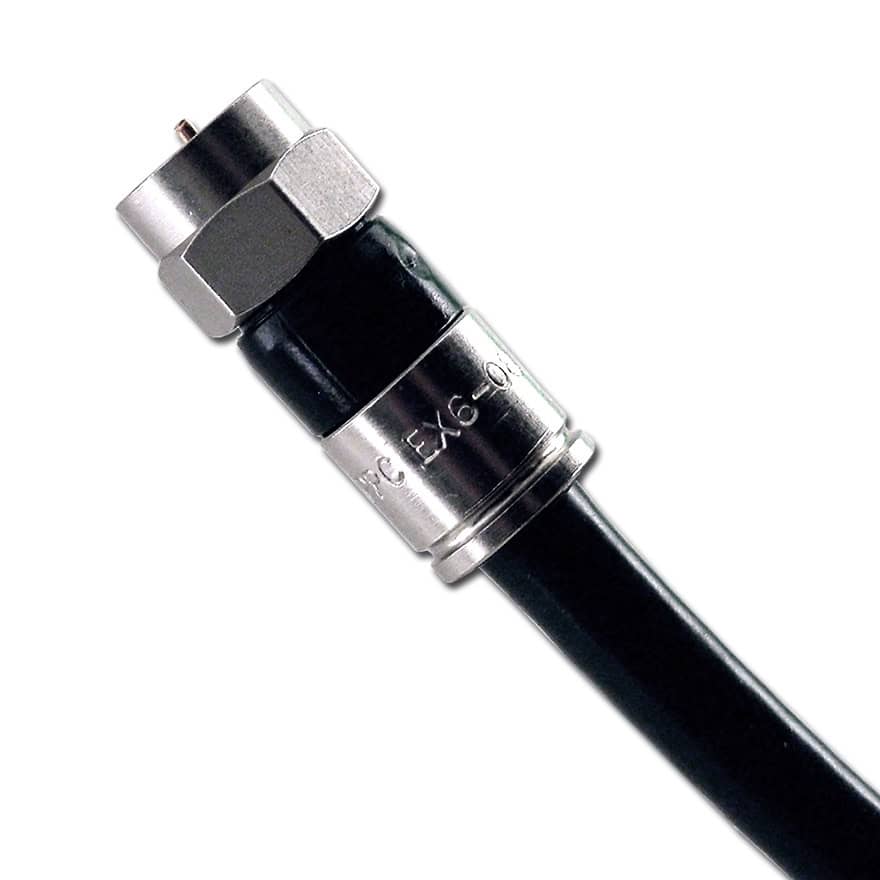

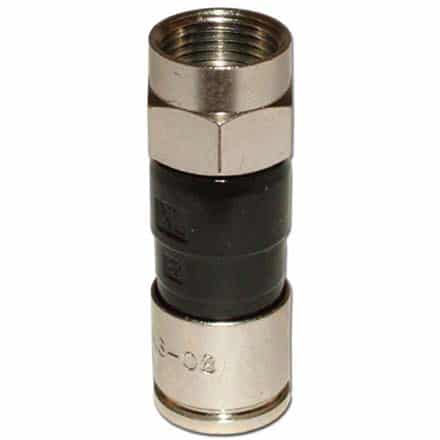

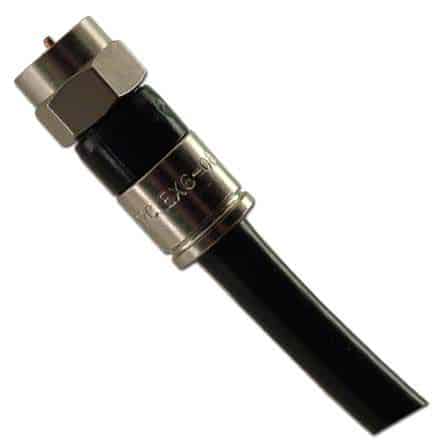

PPC1031 - PPC® EX6XL EX® Universal Extended Body Compression RG-6 Connector,
DTV® & Dish® Approved (Bag of 50)

Installers are faced with the problem of identifying old unmarked 60% through Quad Shield 6 cable, and having to guess which connector is the best match. This results in unnecessary service calls due to the use of the wrong connector/cable match. The unique patented design of the EX® connector body achieves true universality on the 60% through Quad Shield for PE, and PVC jackets.

Redundant Sealing The EX6XL has an O-ring that is a redundant seal and is always compression sealing, regardless of torque. A large tapered compression area creates a redundant moisture-tight interface. Also, there is a gas-tight seal connection between the nut and the post. Finally, three circumferential gaskets seal the body to the post.

Easy to Use After stripping your cable, simply insert the coaxial cable into the connector. Once in place, crimp the connector with the appropriate compression tool for a tight, reliable termination! EX® RG-6 Connectors provide a superb cable retention factor or 45 lbs. (20.41 kg) minimum.

Additional Options EX® Universal Extended Body Compression RG-6 Connectors used in combination with port seals ensure proper port sealing every time. Additionally, they are both DirecTV® and Dish® approved!

(Bag of 50)

Bandwidth: 0 MHz to 3 GHz
Impedance: 75 Ohms (nominal)
Return Loss: Minimum -30 dB to 3 Ghz
Insertion Loss: Less than .10 dB to 3 GHz
Operating Voltage: 90 V (at 60 Hz continous AC)
Operating Temperature: -40°F to + 140°F (-40°C to 60°C)
Cable Retention: 45 lbs. (20.41 kg) minimum
Meets or Exceeds all SCTE Specifications
PPC1031 $34.99 for Bag of 50

Price Includes Shipping within the 48 Cont. United States

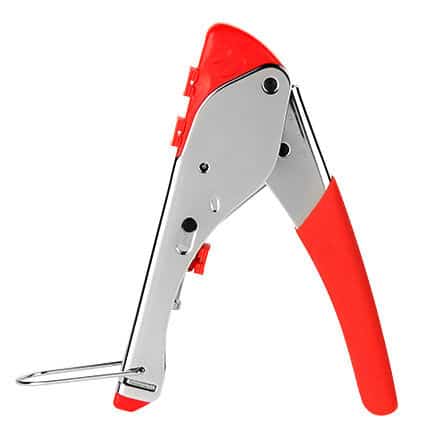

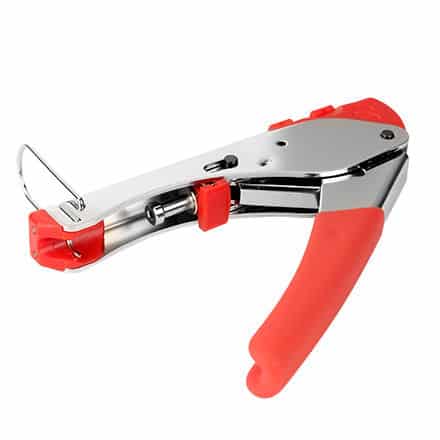

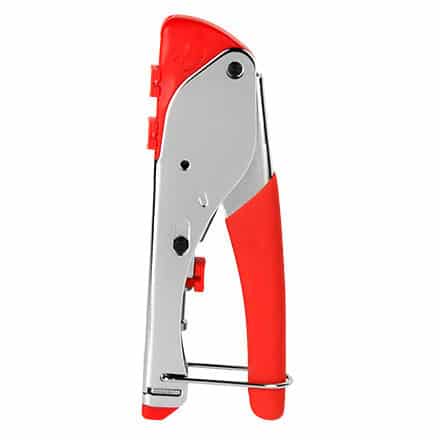

NSM1047 - InstallMates Compace Compression Tool w/ Adaptors

The Installmates™ compact compression tool can compress 3 different types of connectors with the included adaptors. These adaptors are conveniently stored in the handle to keep them handy and organized.

BNC, RCA, and F Connectors

This versatile compression tool works for BNC, RCA, and F connectors. This gives you versatility and saves you money by not having to buy several tools.

Textured grip

You could be putting on connectors all day and that can really take a toll on your hands. The NSM1047 has a textured non-slip grip designed for comfort and control.

Spring Loaded with Locking Latch

This latch is great for keeping the tool closed and compact. Easily stow away in your pocket or your tool belt when you’re on an install.

NSM1047 $38.99

Price Includes Shipping within the 48 Cont. United States

PLA1061 - Platinum Tools® 16220 SealSmart™ II Compression Tool

Platinum Tools® 16220 SealSmart™ II Compression Tool The Seal-Smart™ II Compression Tool utilizes a universal head design that will work with all standard compression connectors available on the market, including right angle and RGB mini. Easily terminate F, BNC, and RCA connectors with a single tool!

Compact The compact and lightweight design of the SealSmart™ II easily fits into a tool belt without adding unneeded weight. Because it only takes one tool to terminate a variety of connectors, it saves room as well!

Quick Adjust Quickly adjust crimp height to suit the connector by rotating the Universal Adapter Head of the SealSmart™ II by hand. The Universal Adapter Head will move via the built in threads. Once in the desired place, simply tighten the Lock Washer with a few turns to the secure the Head in place. Now you’re ready for a fast and reliable termination!

Platinum Tools™ Platinum Tools™, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely and high quality manner. All of Platinum Tools™ products absolutely must satisfy three critical benchmark criteria, utility of function, quality of function, and economic value.

PLA1061 $48.99

Price Includes Shipping within the 48 Cont. United States

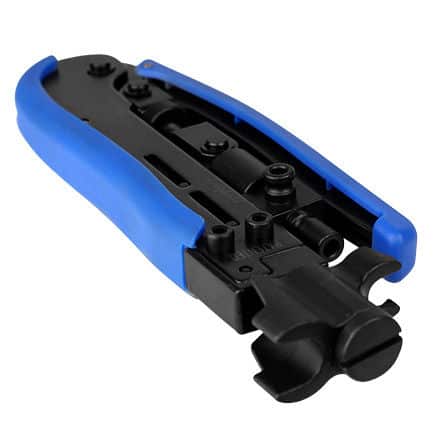

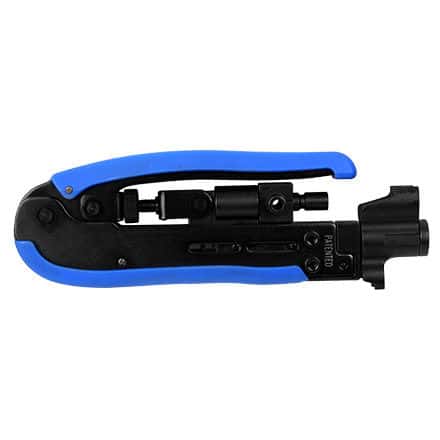

NSM1070 - InstallMates™ Lock & Seal Universal Compression Tool

Installmates™ Lock & Seal Universal Compression Tool The Installmates™ Lock & Seal Universal Compression Tool utilizes a universal head design that will work with all standard compression connectors available on the market, including right angle and RGB mini. Easily terminate F, BNC, and RCA connectors with a single tool!

Compact The compact and lightweight design of the Installmates™ Lock & Seal Universal Compression Tool easily fits into a tool belt without adding unneeded weight. Because it only takes one tool to terminate a variety of connectors, it saves room as well!

Quick Adjust Quickly adjust crimp height to suit the connector by rotating the Universal Adapter Head of the Installmates™ Lock & Seal Universal Compression Tool by hand. The Universal Adapter Head will move via the built in threads. Once in the desired place, simply tighten the Lock Washer with a few turns to the secure the Head in place. Now you’re ready for a fast and reliable termination!

Sturdy Construction The Installmates™ Lock & Seal Universal Compression Tool is made of hardened steel with a black oxide finish. The exterior features a comfort grip for superior handling.

NSM1070 $52.99

Price Includes Shipping within the 48 Cont. United States

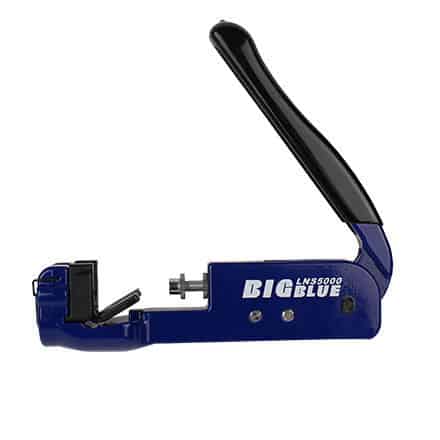

NSM1072 - InstallMates™ Big Blue™ Universal Compression Tool

Installmates® Big Blue™ Universal Compression Tool Skywalker Signature Series Lock & Seal, Thomas & Betts™ SNAP-N-SEAL®, Antec Digicon®, PPC-EX and EXXL, PCT® DRS, Gilbert UltraEase™, Paladin SealTite™, and Perma-Seal™ connectors – yep, the Big Blue™ Universal Compression Tool can handle it all!

Solid Construction From the moment you pick up the Big Blue™, you know that this heavy-duty tool means business. The solid weight produces a secure compression every time – and can take any beating that comes its way.

Spring-Loaded The Big Blue™ is spring-loaded to ensure continually reliable compressions, and saves your hands when you have plenty of connections to make throughout the day. A clip keeps the handle locked in place when the tool is not in use.

Built-In Plungers Plungers for BNC, F, and RCA connectors are included, and are conveniently stored in the body of the compression tool via threaded holes. This ensures that you always have quick access to these plungers when compressing different types of connectors.

Adjustable The Big Blue™ Compression Tool features a hinged piece that flips up and down to accommodate connectors of different sizes. This makes it fast and easy to adjust for long or shallow depths.

Comfort Grip The Big Blue™ is equipped with a rubber encased handle and grip indentions on opposing side of tool which provide firm hold and ease of use – a much needed feature for repetitious compression!

NSM1072 $69.99

Price Includes Shipping within the 48 Cont. United States

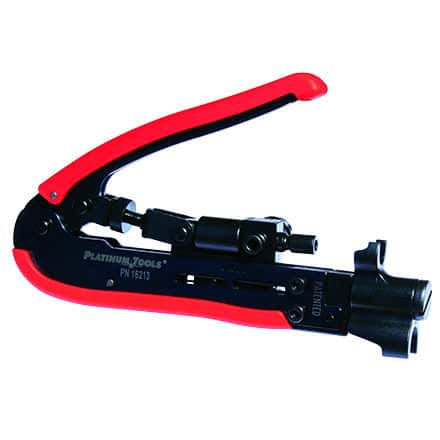

PLA1124 - Platinum Tools 16213C SealSmart PROCON Compression Tool

Platinum Tools® 16213C SealSmart PROCON Compression Tool Contractors will appreciate quick reliable results from our SealSmart PROCON Compression tool. Its rotating head, multi head adaptor, and molded handle offer the best results every time.

Rugged Durability Built to outlast others with a high carbon steel frame, this compression tool is complete with a black oxide rust resistant finish. The SealSmart PROCON Compression tool’s sturdy system was engineered with patented rotating connector positioner-head and multi head adaptor to ensure for lasting quality.

Platinum Tools® Platinum Tools, founded in 1997, was created based upon two very simple objectives. First, develop and source the absolute best possible solutions for the preparation, installation, and hand termination of wire and cable. Second, implement an operational infrastructure that can deliver these products in an efficient, timely, and high quality manner. All of Platinum Tools® products absolutely must satisfy three critical benchmark criteria: utility of function, quality of function, and economic value.

PLA1124 $79.99

Price Includes Shipping within the 48 Cont. United States

RG-11 Cable Ends

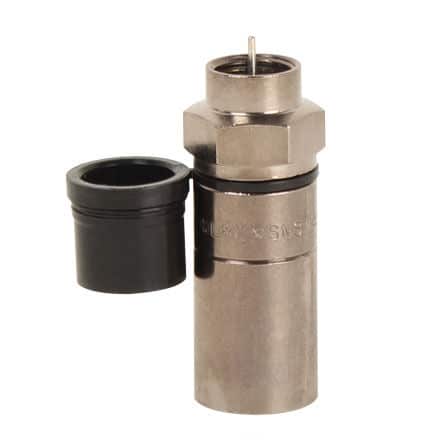

SNS11AS - Thomas & Betts Snap-N-Seal® “F” Series Male Environmentally Sealed RG-11 Connectors (Box of 36)

Thomas & Betts Snap-N-Seal® “F” Series Male Environmentally Sealed RG-11 Connectors (Box of 36) LRC® Snap-N-Seal® connectors are environmentally sealed to protect drops from harsh environments. Through a unique 360° compression process, Snap-N-Seal® connectors also offer the sustainable signal leakage protection required for today’s systems. Installation requires simple one-step 1/4" - 1/4" cable preparation.

Superb Performance The SNS11AS has superb return loss performance of -30dB to 1GHz. True 360 degree compression onto cable ensures superior RF shielding performance, -95dB effective shielding (typical on 60% bonded foil cable), and provides superior RF integrity.

Reliable Construction The SNS11AS incorporates an iridescent chromate finish plus UV resistant plastic and O-rings to provide a reliable, environmentally sealed product. It is manufactured of high quality 360 brass and is cadmium plated with chromate coating for maximum corrosion resistance.

Even More Features! Cable retention exceeds 40 lb. minimum as specified by the SCTE and quad-sealed system prevents moisture migration. Also, the product number is permanently stamped on each connector for easy identification.

(Box of 36)

Physical Properties
Nut, Post and Collar: Brass CDA360
Nut and Collar Finish: Cadmium Plated with Iridescent Chromate Coating
Post Finish: Tin Plated
O-Ring: Ethylene Propylene
Electrical Properties
Return Loss: = -30 dB up to 1 gHz typical
Insertion Loss: = 0.18 dB typical up to 1 gHz typical
RFI Shielding: -95 dB typical (60% Bonded Foil Cable)
Mechanical Properties
Cable Retention: 40 lbs. min. Complies to SCTE IPS-SP-404
Environmental Properties
Temperature Rating: -40°F (-40°C) to 140°F (60°C)
SNS11AS $169.99 for Bag of 36

Price Includes Shipping within the 48 Cont. United States

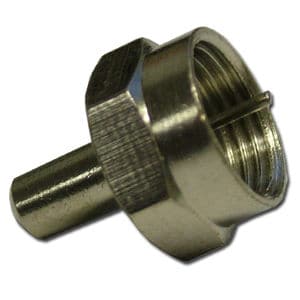

SKY01119 - Skywalker Signature Series 75 ohm Terminator 1GHz
Pack of 100
SKY01119 $12.99 for 10 Pieces
Price Includes Shipping within the 48 Cont. United States

$29.99 for Bag of 100
Price Includes Shipping within the 48 Cont. United States

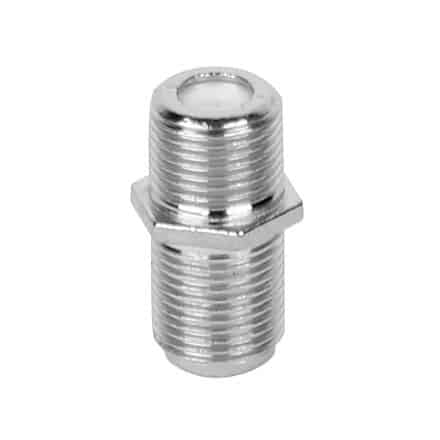

SKY01110Z - Skywalker Signature Series F-81 Dual Female Splice

These F-81 barrel connectors provide a great way to splice two RG-6 cables together with minimum insertion loss. Recommended for 5-900 MHz connections.

Pack of 100

SKY01110Z $12.99 for 10 Pieces
Price Includes Shipping within the 48 Cont. United States

$29.99 for Bag of 100
Price Includes Shipping within the 48 Cont. United States

DC Block

This DC Block has a female and male F Connection. When inserted into the line it will block DC current from passing through while permitting RF Power to flow. In-Line Configuration / 5-2500MHz

Pack of 10

SKY16900 $26.99 for Bag of 10

Price Includes Shipping within the 48 Cont. United States

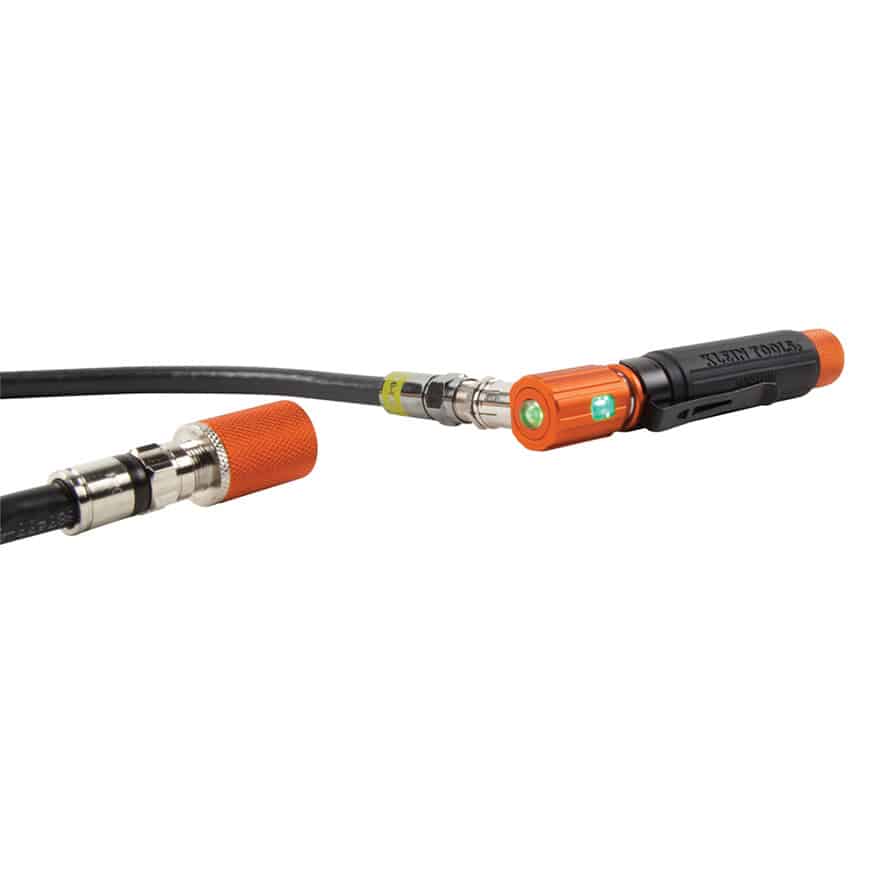

KLN2048 - Klein Tools® VDV512-007 Pocket Continuity Tester for Coax Cable

Quickly trace coaxial cable! The Klein Tools Pocket Continuity Tester identifies and tests for continuity and short falls via an audible been and LED indicators. The included remote beeps to confirm continuity and the batteries are included.

Features:
This tester is well-equipped. The LED light goes green for continuity and red for shorts. The F-adapter enables testing of loose cables and installed cable runs. Best of all, it switches off when the remote is docked to save battery life.

Klein Tools:
Today, Klein Tools, Inc. represents much more than Klein plierrs. The company's product line has broadened to include virtually every major type of hand tool used in construction, electronics, mining and general industry in addition to the electrical and telecommunications fields.



KLN2048 $48.99

Price Includes Shipping within the 48 Cont. United States


SKY2627 - Skywalker Signature Series Coax Cable Sealant Tape
1/2” x 60” | Non-Contaminating & Non-Conductive

Defend the quality of your signal against environmental conditions with our Signature Series Coax Cable Sealant Tape. Flexible at any temperature, this tape forms and seals over any fitting. The synthetic rubber material is non-contaminating and non-conductive.

SKY2627 $3.99 Per Roll
Plus Shipping within the 48 Cont. United States

apc

Coax Seal Tape - 1, 2 or 3 Rolls
Click on Drop Down Button to Select Quantity

APW

  If ordering Multiple Items, please write for Cheaper Shipping Cost.
INSTALLATION ACCESSORIES
Cable Connectors / Cable Clips / Wire Ties / Tools etc.
All Listed Shipping Costs are for within the 48 Cont. United States

Ricks Satellite
Sales, Service & Local Installation -- C / Ku / MPEG2 Satellite Systems / DSS Accessories
316 NE Summit Drive -- Blue Springs, Missouri 64014 USA -- 816-228-1801

Contact Ricks Satellite

Major Credit/Debit Cards Accepted
Money Orders and Checks accepted also.

Ricks Satellite cannot offer for Sale any Manufacturers Extended Warranties. They must be purchased directly from the Manufacturer.

PAY PAL Address is RickCaylor@aol.com
Most Orders Shipped Same Day! UPS Tracking numbers are also provided!

In Association with Gofastmotorsports.com

Ricks Satellite Home - Satellite Receivers - USB Satellite Receivers - A/V Receivers - Satellite Systems - Satellite Dishes
Signal Meters - LNBs/LNBFs - Feed Horns - Venture Mfg. Co. Actuators & Accessories - PR1200 V-Box Dish Mover / Actuator Controller - H to H DiSEqC Ku Dish Motors
Servo Motors - Signal Combiners & Amplifiers - Multi Switches & Diplexers - DiSEqC Switches - Remotes - Coax Cable & Satellite Ribbon - Installation Accessories
Splitters - Channel Modulators & Video Senders - Off Air Antennas

Last Update; 01/13/23 06:09 PM
Copyright by
Ricks Satellite 2003-2022
